Customizable Silicone Foam Strip Bonding Machine for Gasket Production

Product Details

Place of Origin: SHENZHEN

Certification: SDS

Payment & Shipping Terms

Minimum Order Quantity: 1KG

Price: $10-$100

Delivery Time: 15

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              silicone foam strip bonding machine, customizable gasket production machine, adhesive bonding machine for foam


Maximum Bonding Width:	500mm	Heating Temperature:	0-200℃
Control System:	PLC	Power Source:	Electric
Heating Time:	0-60 Seconds	Voltage:	220V
Type:	Automatic	Application:	Bonding
Frequency:	50Hz	Pressure Range:	0-10MPa
Maximum Bonding Thickness:	5mm	Power Consumption:	1000W

Maximum Bonding Width:	500mm
Heating Temperature:	0-200℃
Control System:	PLC
Power Source:	Electric
Heating Time:	0-60 Seconds
Voltage:	220V
Type:	Automatic
Application:	Bonding
Frequency:	50Hz
Pressure Range:	0-10MPa
Maximum Bonding Thickness:	5mm
Power Consumption:	1000W

Description

Customizable Silicone Foam Strip Bonding Machine for Gasket Production

Product Description

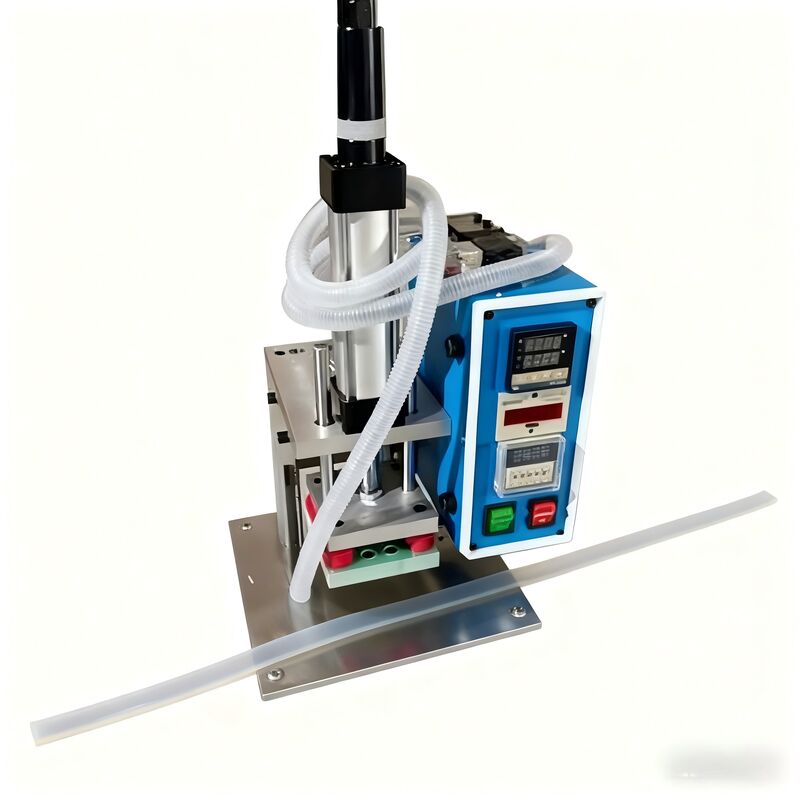

Silicone strip bonding/cutting equipment

Specialized for bonding extrusion type silicone rubber gaskets ,clear transparent appearance which swiftly cures to be silicone polymer in high temperature environment ,offering permanent bond of the silicone rubber joint cords.

Working air pressure	4~6 bar
Fastest working speed	1000 times/ hours
Up mold height	5.5cm
Power input	AC 220V 60Hz
L.W.H	403868cm

Applications

silicone tubes

silicone o ring

silicone products hot bonding.

Method of application
1, Mix adhesive KL-301G(ABC) evenly by mixing weight ratio A:B:C=10:10:1 For example, 10g KL-301G(A) mixing 10g KL-301G(B) and 1g KL-301G(C)
2, Spread the adhesive on a thin sheet , coating thickness less than 0.5mm


3, Preheat the silicone gaskets ends against the hot mold to ensure optimised bonding strength.


4, Dip the gaskets ends with tiny adhesives.


5, Swiftly push in the two the cord joints by your hands (make sure the adhesive not get cured before the two cord end meets), keep the horizonal pressure until the upper mold close down to secure full contact of the bonding area


6, Close the mold for 10-20 seconds with temperature 180℃, enabling the adhesive to delivery optimized bonding strength after absorbing sufficient heat. After heating bonding, the adhesive will achieve strongest bonding strength when the adhesive is cooled at room temperature.


As you can see below photo of the finished gaskets ,the bonding parts is still visible
