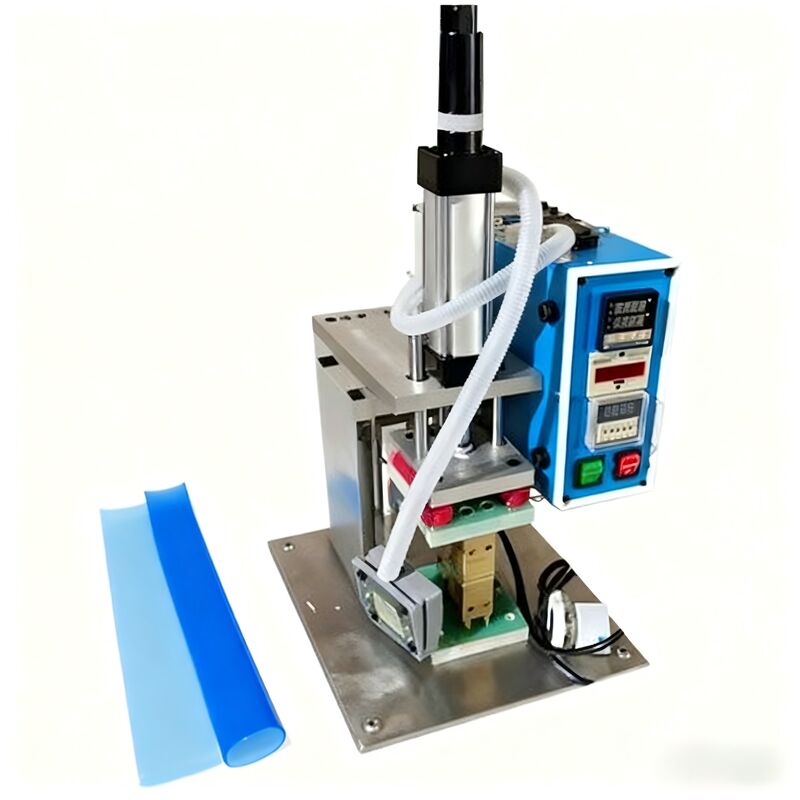

Automatic Silicone Strip Gluing Machine for Door and Window Sealing

Product Details

Place of Origin: SHENZHEN

Certification: SDS

Payment & Shipping Terms

Minimum Order Quantity: 1KG

Price: $10-$100

Delivery Time: 15

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              automatic silicone strip gluing machine, door and window sealing machine, adhesive bonding machine with warranty


Maximum Bonding Width:	500mm	Heating Temperature:	0-200℃
Control System:	PLC	Power Source:	Electric
Heating Time:	0-60 Seconds	Voltage:	220V
Type:	Automatic	Application:	Bonding
Frequency:	50Hz	Pressure Range:	0-10MPa
Maximum Bonding Thickness:	5mm	Power Consumption:	1000W

Maximum Bonding Width:	500mm
Heating Temperature:	0-200℃
Control System:	PLC
Power Source:	Electric
Heating Time:	0-60 Seconds
Voltage:	220V
Type:	Automatic
Application:	Bonding
Frequency:	50Hz
Pressure Range:	0-10MPa
Maximum Bonding Thickness:	5mm
Power Consumption:	1000W

Description

Automatic Silicone Strip Gluing Machine for Door and Window Sealing

Product Description

Silicone strip bonding/cutting equipment

Specialized for bonding extrusion type silicone rubber gaskets ,clear transparent appearance which swiftly cures to be silicone polymer in high temperature environment ,offering permanent bond of the silicone rubber joint cords.

Working air pressure	4~6 bar
Fastest working speed	1000 times/ hours
Up mold height	5.5cm
Power input	AC 220V 60Hz
L.W.H	403868cm

Applications

silicone tubes

silicone o ring

silicone products hot bonding.

Method of application
1, Mix adhesive KL-301G(ABC) evenly by mixing weight ratio A:B:C=10:10:1 For example, 10g KL-301G(A) mixing 10g KL-301G(B) and 1g KL-301G(C)
2, Spread the adhesive on a thin sheet , coating thickness less than 0.5mm


3, Preheat the silicone gaskets ends against the hot mold to ensure optimised bonding strength.


4, Dip the gaskets ends with tiny adhesives.


5, Swiftly push in the two the cord joints by your hands (make sure the adhesive not get cured before the two cord end meets), keep the horizonal pressure until the upper mold close down to secure full contact of the bonding area


6, Close the mold for 10-20 seconds with temperature 180℃, enabling the adhesive to delivery optimized bonding strength after absorbing sufficient heat. After heating bonding, the adhesive will achieve strongest bonding strength when the adhesive is cooled at room temperature.


As you can see below photo of the finished gaskets ,the bonding parts is still visible

Company Profile
Kanglibang, which was established in Shenzhen in 2006, is positioned as an innovative Research & Development enterprise. Its main products are silicone pressure-sensitive adhesives, silicone glue, silicone composite materials, and self-adhesive liquid silicone series. ·Product Applications: New energy adhesives and power environmental protection adhesives, smart home and new kitchen supplies, optical films and touch screens, silicone baby products, medical tape application, automotive and communication equipment, and other fields. ·Service areas: Supplier for the world's top 500 enterprises; the designated supplier of silicone adhesive products for industry units, the designated service supplier of "China Shenzhou 10 spacecraft" high-temperature resistant silicone composite materials. Serve more than 17,000 customers, the market share of individual market segments has reached 60-70%.
Why Choose Us
Our exhibition: Cooperation with partners from different countries

Our factory: Advanced manufacture equipment

Certifications obtained by kanglibang
Shipping
We cooperate with professional shipping companies, supplying you with the best logistics solutions, quick and efficient service and good shipping price.
FAQ
Q1: Are you a manufacturer or a trading company?
 A: We are a manufacturing company in Shenzhen, China. Welcome to visit our factory!
Q2: What are your payment methods?
A: T/T, Western Union, L/C etc.
 Q3: How about the MOQ?
 A: Generally it is 1 kg.
Q4: What is the shelf life?
A: 6 months.
 Q5: What's the delivery time?
A: It depends on the quantity, usually it will take 3-7 days.
  Q6: Do you provide free samples?
A: Yes, we provide 100g free samples for some products.
 Q7: How can I get the price?
A: We need to confirm which product you need first, the quantity, and other requirements.
Q8: Can I get a discount price?
Surely, it depends on your quantity.
 Q9: Is it possible to customize the labels with my design?
A: Yes! You just need to send us your drawings or artwork, then you can get what you want.
