H4Si Silicone Adhesive Tube Bonding Machine High Temperature ODM

Name: H4Si Silicone Adhesive Tube Bonding Machine High Temperature ODM
Brand: Shenzhen KangLiBang Technology Co., Ltd
SKU: HTMD-KLB
Price: 55.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: KangLiBang

Certification: ROHS，SGS

Model Number: HTMD-KLB

Payment & Shipping Terms

Minimum Order Quantity: 1 Piece

Price: $10-$100

Packaging Details: 1 wooden case

Delivery Time: 5-7days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      H4Si tube bonding machine, ODM tube bonding machine, H4Si silicone sealant machine


Usage:	Construction, Fiber & Garment, Footwear & Leather, Packing, Transportation, Woodworking, Kitchen Ware,adults Products...	MF:	H4Si
EINECS No.:	1	Type:	High Temperature
Power Input:	AC220V 50Hz	Up Die Working Area:	80mm

Usage:	Construction, Fiber & Garment, Footwear & Leather, Packing, Transportation, Woodworking, Kitchen Ware,adults Products...
MF:	H4Si
EINECS No.:	1
Type:	High Temperature
Power Input:	AC220V 50Hz
Up Die Working Area:	80mm

Description

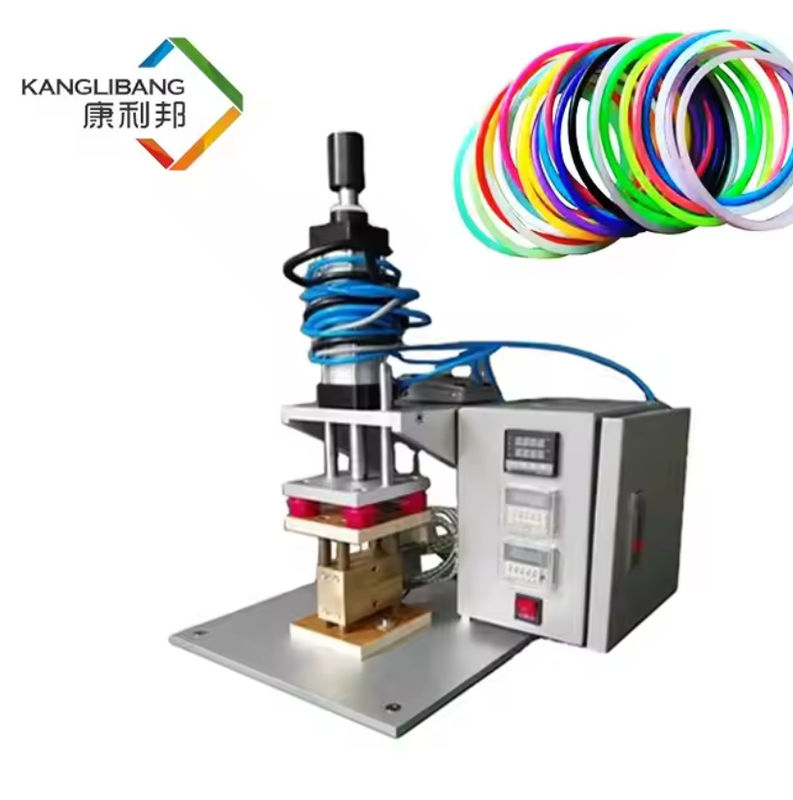

H4Si Silicone Adhesive Tube Bonding Machine High Temperature ODM

The Bond Machine That Used For Silicone Adhesive Silicone

Product Description

Specialized for bonding extrusion type silicone rubber gaskets ,clear transparent appearance which swiftly cures to be silicone polymer in high temperature environment ,offering permanent bond of the silicone rubber joint cords.

Working air pressure	4~6 bar
Fastest working speed	1000 times/ hours
Up mold height	5.5cm
Power input	AC 220V 60Hz
L.W.H	403868cm

Applications

silicone tubes

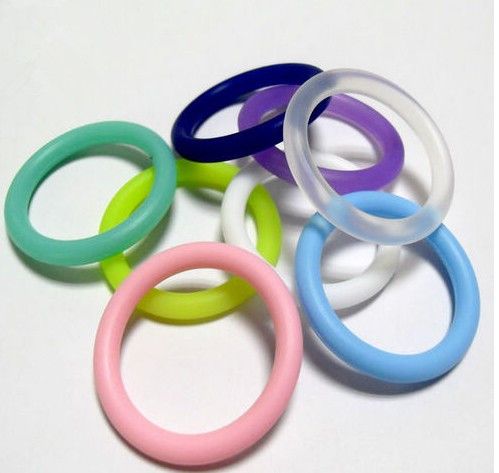

silicone o ring

silicone products hot bonding.

Method of application

1, Mix adhesive KL-301G(ABC) evenly by mixing weight ratio A:B:C=10:10:1 For example, 10g KL-301G(A) mixing 10g KL-301G(B) and 1g KL-301G(C)

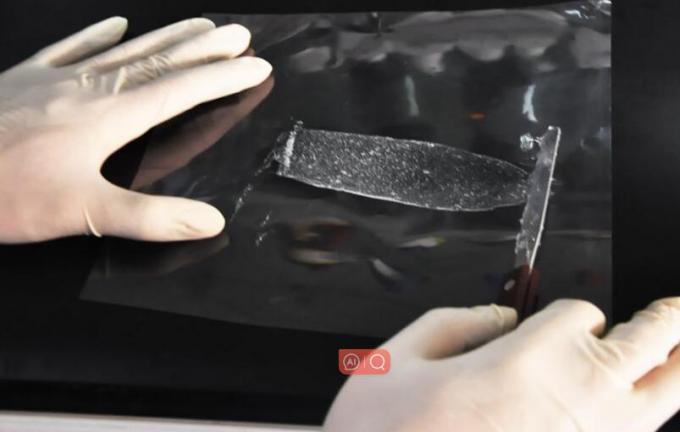

2, Spread the adhesive on a thin sheet , coating thickness less than 0.5mm

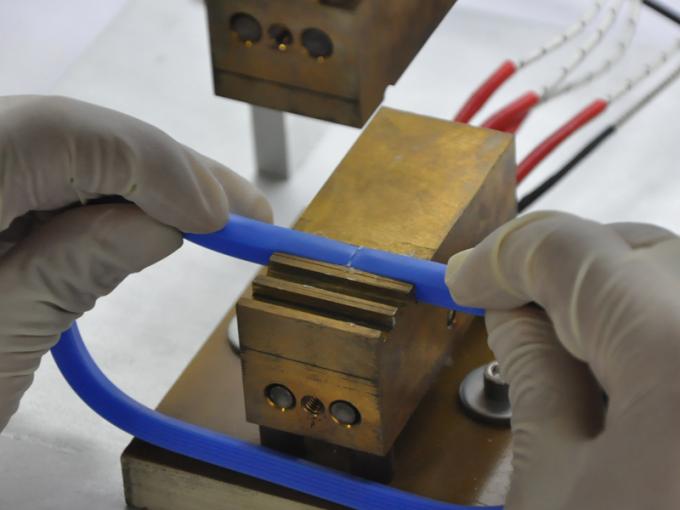

3, Preheat the silicone gaskets ends against the hot mold to ensure optimised bonding strength.

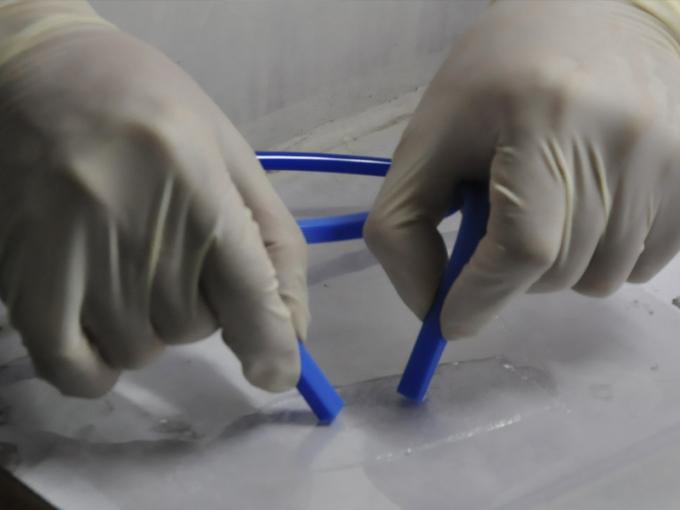

4, Dip the gaskets ends with tiny adhesives.

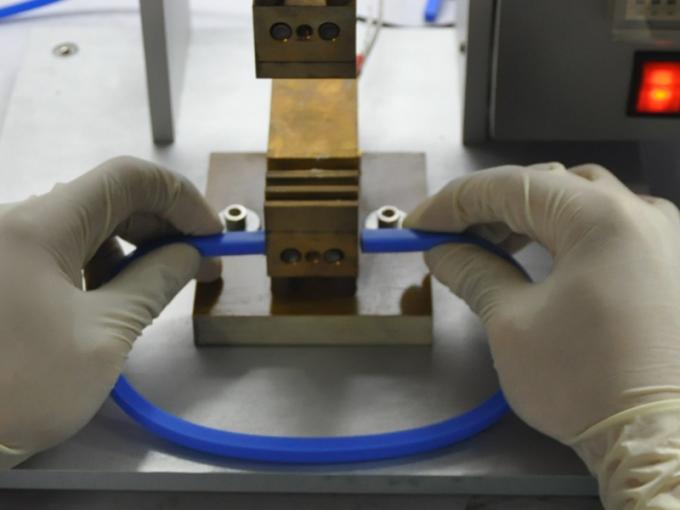

5, Swiftly push in the two the cord joints by your hands (make sure the adhesive not get cured before the two cord end meets), keep the horizonal pressure until the upper mold close down to secure full contact of the bonding area

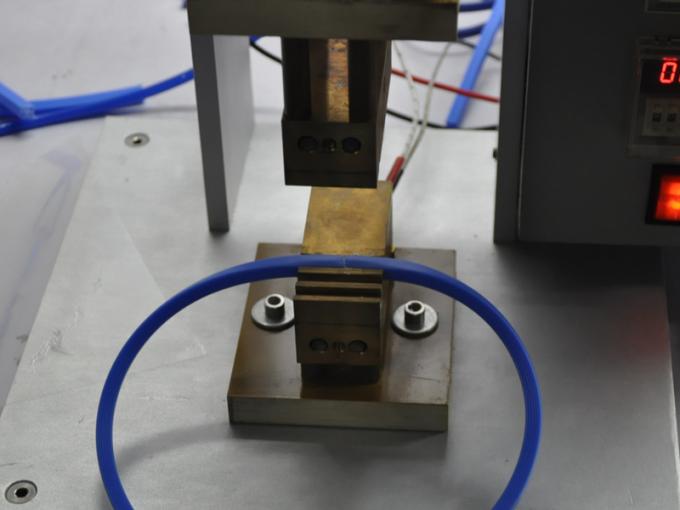

6, Close the mold for 10-20 seconds with temperature 180℃, enabling the adhesive to delivery optimized bonding strength after absorbing sufficient heat. After heating bonding, the adhesive will achieve strongest bonding strength when the adhesive is cooled at room temperature.

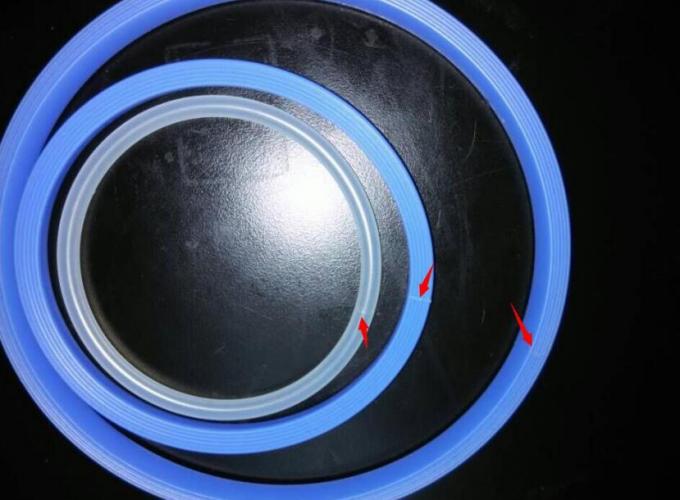

As you can see below photo of the finished gaskets ,the bonding parts is still visible
