Low Resistivity Silicone Conductive Ink for Consumer Electronics & Appliance Buttons

Product Details

Place of Origin: Guangdong, China

Brand Name: KangLiBang

Certification: ROHS，SGS

Payment & Shipping Terms

Minimum Order Quantity: 1KG

Price: $10-$100

Packaging Details: 1KG/BOTTLE

Delivery Time: 5-7 work days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              low resistivity silicone conductive ink, conductive ink for appliance buttons, silicone ink for consumer electronics


Description

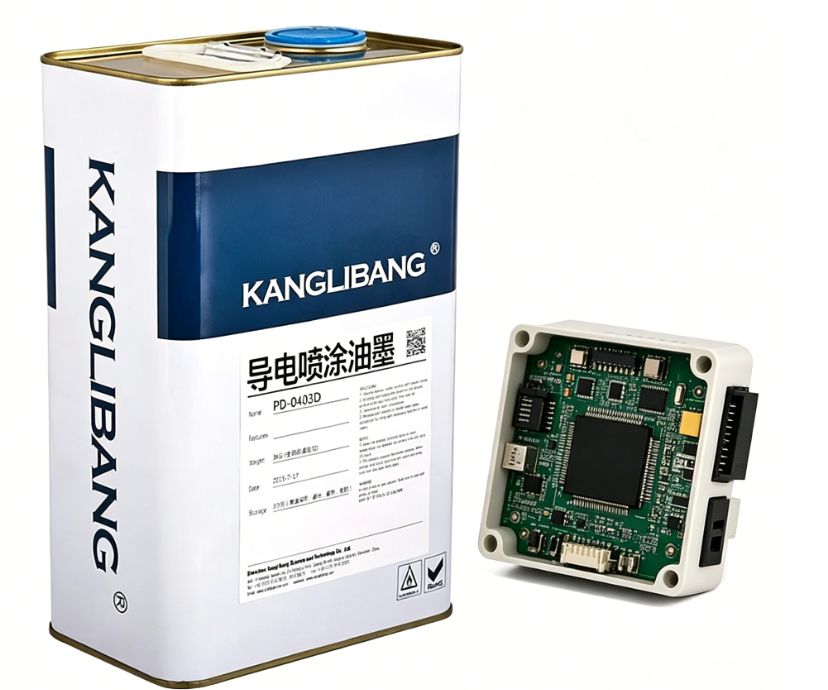

Low Resistivity Silicone Conductive Ink for Consumer Electronics & Appliance Buttons

Silicone Rubber Spraying Conductive Coating Ink

Silicone Rubber Spraying Conductive Coating Ink

Product Description

This ink is produced using high-temperature vulcanization. As a single-component formulation, it is ideal for rendering silicone product surfaces electrically conductive. It works with silk screening, pad printing, and dot printing.

Application

Mainly applied to silicone products that requires electrical conductivity.

Processing

1.Clean the silicone substrate to remove any impurities, oils, particles, etc.
2. Refrigerated ink must be warmed to room temperature before use. If the viscosity is too high during application, adjust it with odorless kerosene to a level appropriate for screen, pad, or dot printing.
3. In a dust-free environment, let the ink rest for 10–30 minutes. Cure it after the solvent has completely evaporated.
4. Bake at 180–200℃ for 10–20 minutes to accomplish vulcanization.
5. Aviation kerosene can be used as a thinner. For dot printing, the dilution ratio (ink:thinner) is 1:2. For screen printing, the ratio is 1:0.2.
6. The resistance value is approximately 100 Ω.
These physical data are for reference only.

Attention

1. The product should be sealed and stored at 0-10°C, and the storage period is three

months. When the product has passed the storage period, it can be further used after

the technical test.

2. The product should be stirred evenly and completely.

3. Printing must be done in a suitable environment. It is recommended to keep the

working area free of dust, keep the temperature below 25 ° C and control the

humidity to 60-75%. Too low humidity will easily cause static electricity in the ink,

which in turn may result in a poor printed image.

4. Unused ink should be sealed and refrigerated.

Packing

1KG/Bottle.

Application range:

Low Resistivity Silicone Conductive Ink for Consumer Electronics & Appliance Buttons 0

Low Resistivity Silicone Conductive Ink for Consumer Electronics & Appliance Buttons 1
