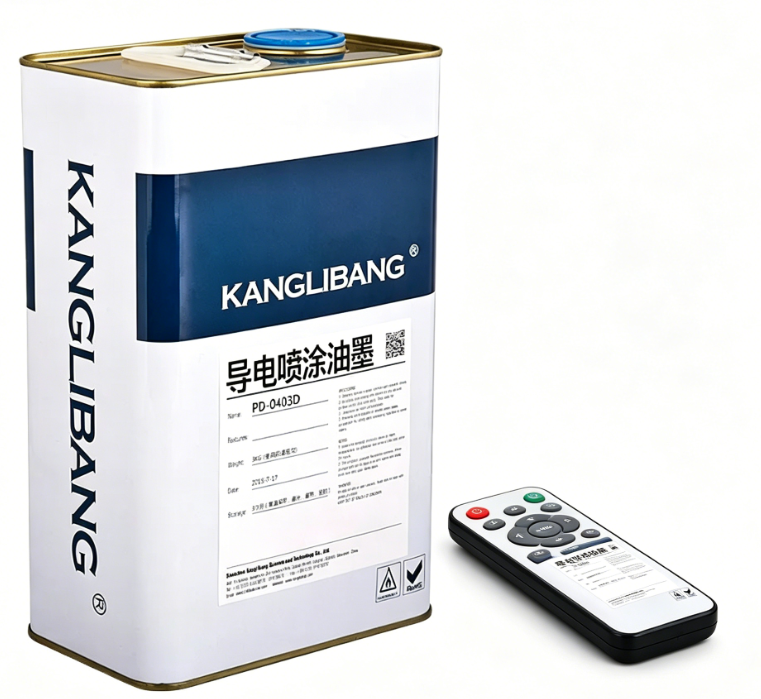

Carbon-Based Silicone Conductive Spray Ink for Keypad & Touch Contacts

Product Details

Place of Origin: Guangdong, China

Brand Name: KangLiBang

Certification: ROHS，SGS

Payment & Shipping Terms

Minimum Order Quantity: 1KG

Price: $10-$100

Packaging Details: 1KG/BOTTLE

Delivery Time: 5-7 work days

Payment Terms: T/T

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              carbon-based silicone conductive spray ink, conductive spray ink for keypad, silicone conductive ink for touch contacts


Description

Carbon-Based Silicone Conductive Spray Ink for Keypad & Touch Contacts

Silicone Rubber Spraying Conductive Coating Ink

Silicone Rubber Spraying Conductive Coating Ink

Product Description

This product is manufactured via high-temperature vulcanization. As a one-part ink, it is designed for application onto silicone product surfaces where electrical conductivity is needed. It works well with silk screening, pad printing, and spot printing.

Application

Mainly applied to silicone products that requires electrical conductivity.

Processing

Remove any contaminants (impurities, oil, particles, etc.) from the silicone surface.
2. After taking the ink from the refrigerator, allow it to warm to room temperature before use. If the viscosity is too high, add odorless kerosene to bring it to a consistency suitable for screen, pad, or dot printing.
3. Let the ink rest for 10–30 minutes in a dust-free area. Once the solvent has fully evaporated, curing occurs.
4. Vulcanize by baking at 180–200℃ for 10–20 minutes.
5. Use aviation kerosene as thinner. For dot printing, mix ink and thinner at 1:2; for screen printing, use 1:0.2.
6. Typical resistance is around 100 Ω.
These values are for reference only.

Attention

1. The product should be sealed and stored at 0-10°C, and the storage period is three

months. When the product has passed the storage period, it can be further used after

the technical test.

2. The product should be stirred evenly and completely.

3. Printing must be done in a suitable environment. It is recommended to keep the

working area free of dust, keep the temperature below 25 ° C and control the

humidity to 60-75%. Too low humidity will easily cause static electricity in the ink,

which in turn may result in a poor printed image.

4. Unused ink should be sealed and refrigerated.

Packing

1KG/Bottle.

Application range:

Carbon-Based Silicone Conductive Spray Ink for Keypad & Touch Contacts 0

Carbon-Based Silicone Conductive Spray Ink for Keypad & Touch Contacts 1
